FV PP-R transition union female

System:	FV AQUA
Material:
Standard:	ČSN EN ISO 15874
Details:	Transition demountable fitting from plastic part to metal part of pipeline.

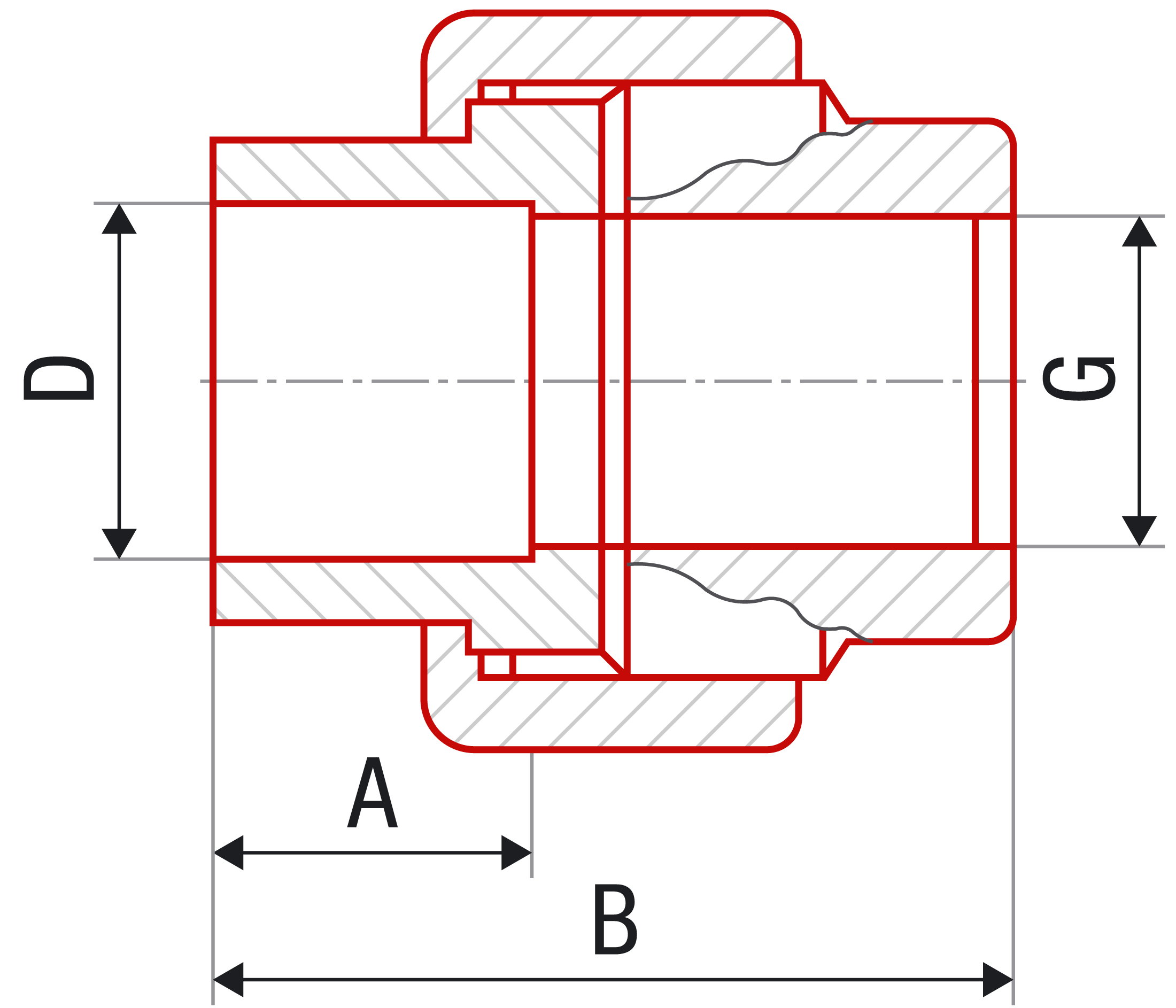

						#	#	D [mm]	A [mm]	B [mm]	G
20 × 1/2"	pcs	150	1	0.10	0.07	AA236020012	BM236020012	20	14.5	41	1/2"
25 × 3/4"	pcs	75	1	0.16	0.15	AA236025034	BM236025034	25	16.0	44	3/4"
32 × 1"	pcs	50	1	0.19	0.22	AA236032001	BA236032001	32	18.1	46	1"
32 × 5/4"	pcs	50	1	0.29	0.36	AA236032054	BM236032054	32	18.1	51	5/4"
40 × 5/4"	pcs	30	1	0.32	0.36	AA236040054	BM236040054	40	20.5	51	5/4"
50 × 6/4"	pcs	25	1	0.48	0.55	AA236050064	BM236050064	50	23.5	52	6/4"
63 × 2"	pcs	8	1	0.82	1.37	AA236063002	BM236063002	63	27.4	64	2"

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Teflon band or special sealing putty containing Teflon. It is suffi cient to apply it on the first two or three threads. Never use classical hemp – after it absorbs water, the thread may crack due to the inner pressure.
