| System: | FV AQUA |
| Material: | |
| Standard: | ČSN EN ISO 15874 |
| Details: | Allows multiple faucet fittings to be fitted on one route. |
- Search term must have more than 2 characters.

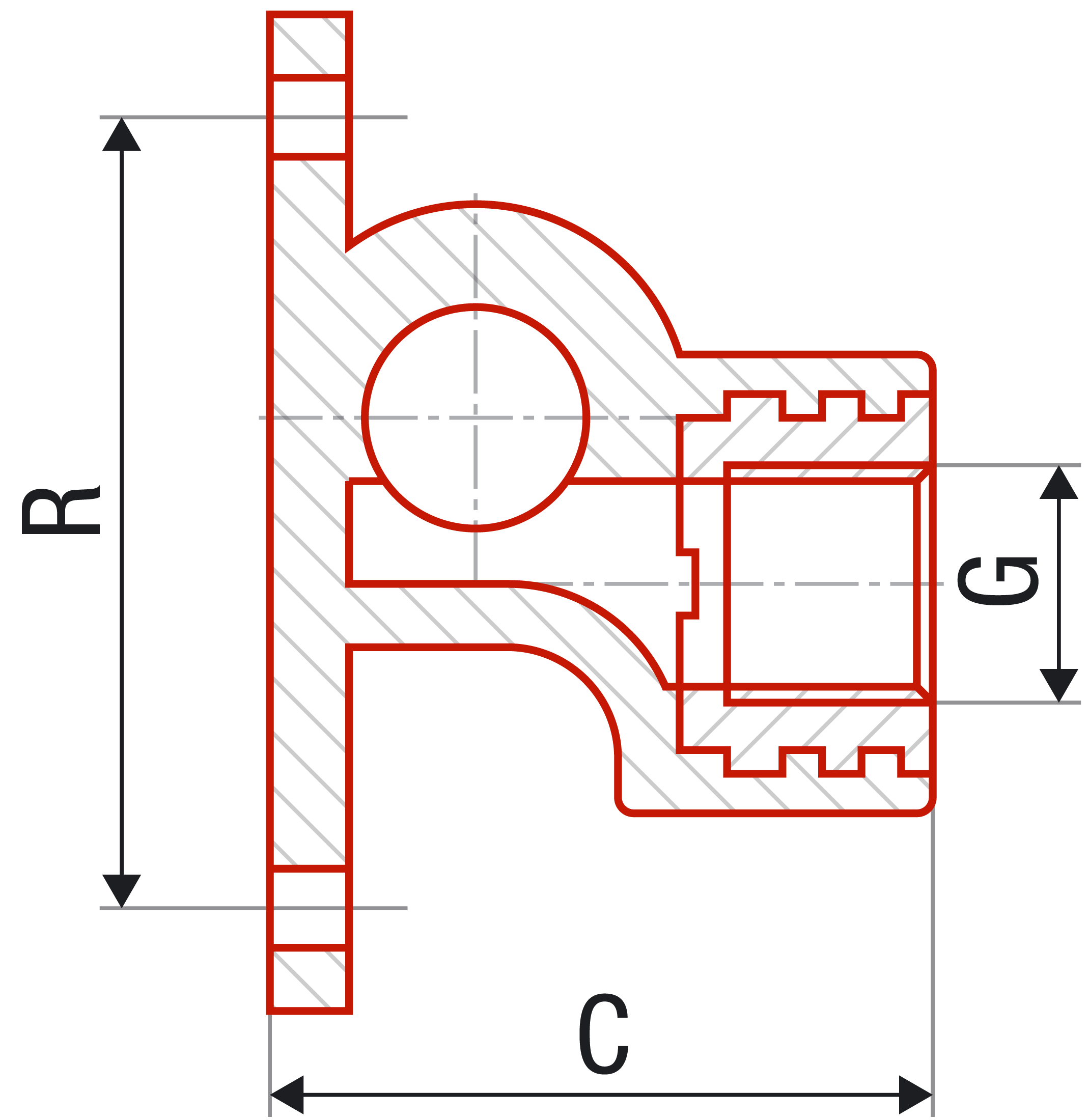

FV PP-R/PP-RCT wall-mounted tee (through-wall bracket)
 |  |  |  |  |  | #  | #  | D [mm] | A [mm] | C [mm] | R [mm] | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 × 1/2" | pcs | 60 | 10 | 0.08 | 0.21 | AA220020012 | BA220020012 | 20 | 14.5 | 50 | 61.5 | 1/2" |
| 25 × 1/2" | pcs | 50 | 10 | 0.09 | 0.36 | AA220025012T | BM220025012 | 25 | 16.0 | 56 | 75.0 | 1/2" |
-
Price list We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
-
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Teflon band or special sealing putty containing Teflon. It is suffi cient to apply it on the first two or three threads. Never use classical hemp – after it absorbs water, the thread may crack due to the inner pressure.
-
Abbreviations
-
Form
