FV PP-R tee with metal male thread

System:	FV AQUA
Material:
Standard:	ČSN EN ISO 15874
Details:	Transition fitting from plastic part to metal part of pipeline.

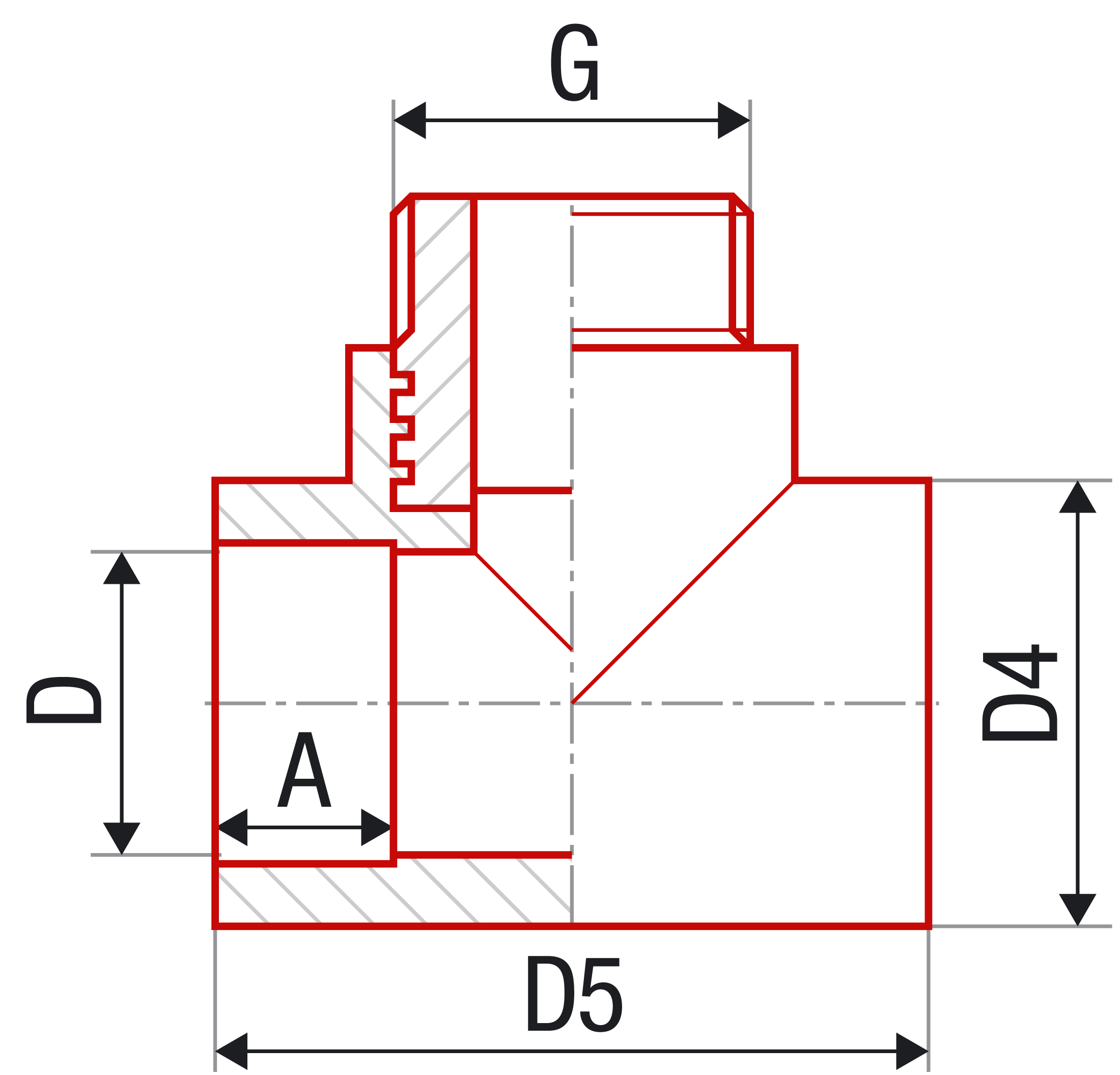

						#	#	D [mm]	D4 [mm]	D5 [mm]	A [mm]	G
20 × 1/2"	pcs	100	10	0.09	0.19	AA254020012	BM254020012	20	29.2	36.8	14.5	1/2"
25 × 1/2"	pcs	40	10	0.10	0.24	AA254025012	BM254025012	25	37.0	41.0	16.0	1/2"
25 × 3/4"	pcs	30	10	0.17	0.32	AA254025034	BM254025034	32	37.0	41.0	16.0	3/4"

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Teflon band or special sealing putty containing Teflon. It is suffi cient to apply it on the first two or three threads. Never use classical hemp – after it absorbs water, the thread may crack due to the inner pressure.
