FV PP-R tee with metal female thread

System:	FV AQUA
Material:
Standard:	ČSN EN ISO 15874
Details:	Allows branching of a part to brass threaded connections and fittings.

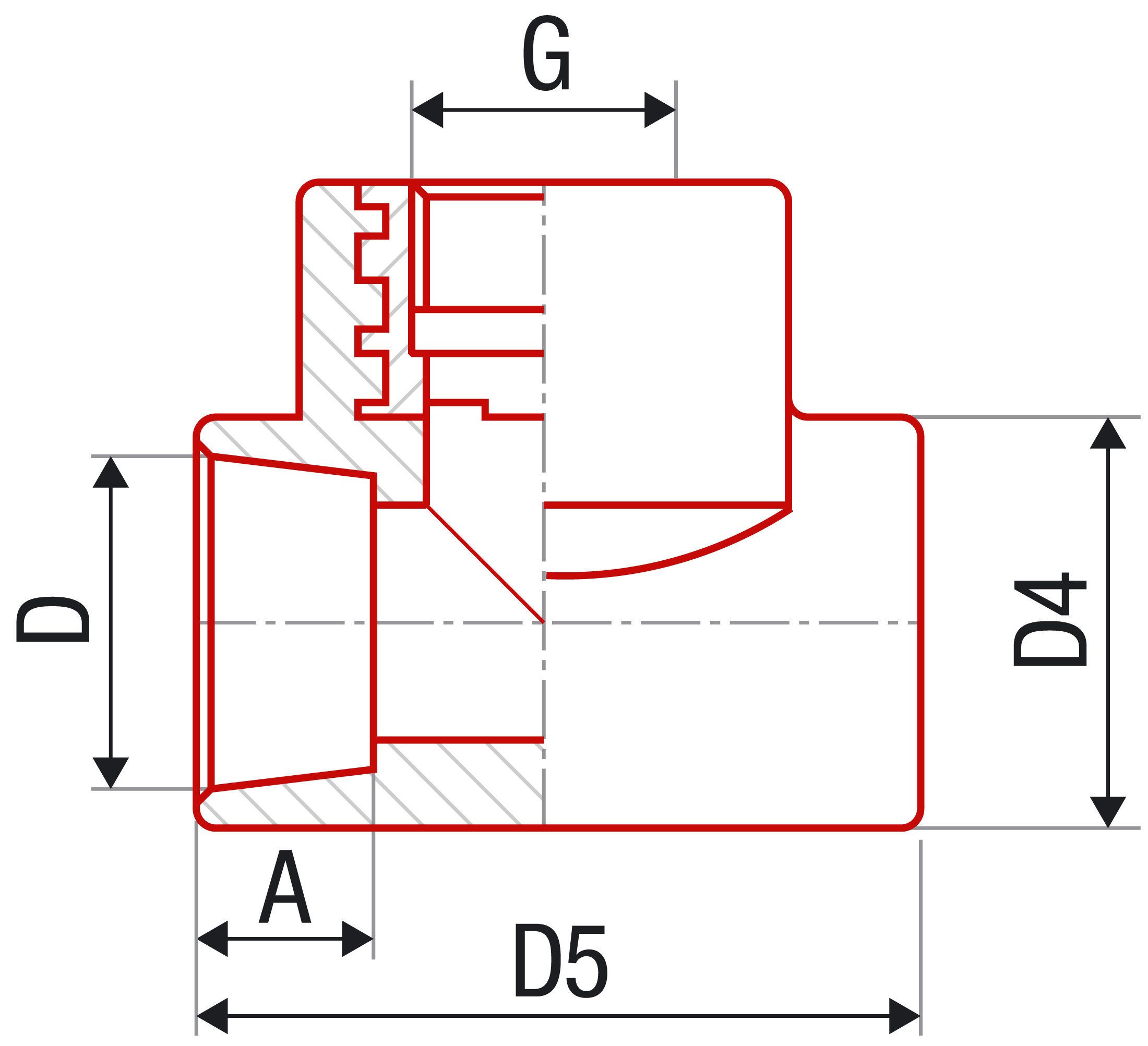

						#	#	D [mm]	D4 [mm]	D5 [mm]	A [mm]	G
20 × 1/2"	pcs	60	10	0.07	0.19	AA222020012	BM222020012	20	29.0	37.0	14.5	1/2"
25 × 1/2"	pcs	40	10	0.08	0.24	AA222025012	BM222025012	25	36.0	37.0	16.0	1/2"
25 × 3/4"	pcs	30	10	0.13	0.32	AA222025034	BM222025034	25	38.4	46.5	16.0	3/4"
32 × 1"	pcs	40	5	0.22	0.60	AA222032001	BM222032001	32	48.4	58.0	18.1	1"

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Screwed joints at combined fittings with a metal thread need to be sealed only with a Teflon band or special sealing putty containing Teflon. It is suffi cient to apply it on the first two or three threads. Never use classical hemp – after it absorbs water, the thread may crack due to the inner pressure.
