FV PP-R/PP-RCT welding saddle

System:	FV AQUA
Material:	PP-R/PP-RCT
Standard:	ČSN EN ISO 15874
Details:	Shaped fitting to allow for additional insertion of a tap. The hole diameter is drilled according to the required D1 of the tap.

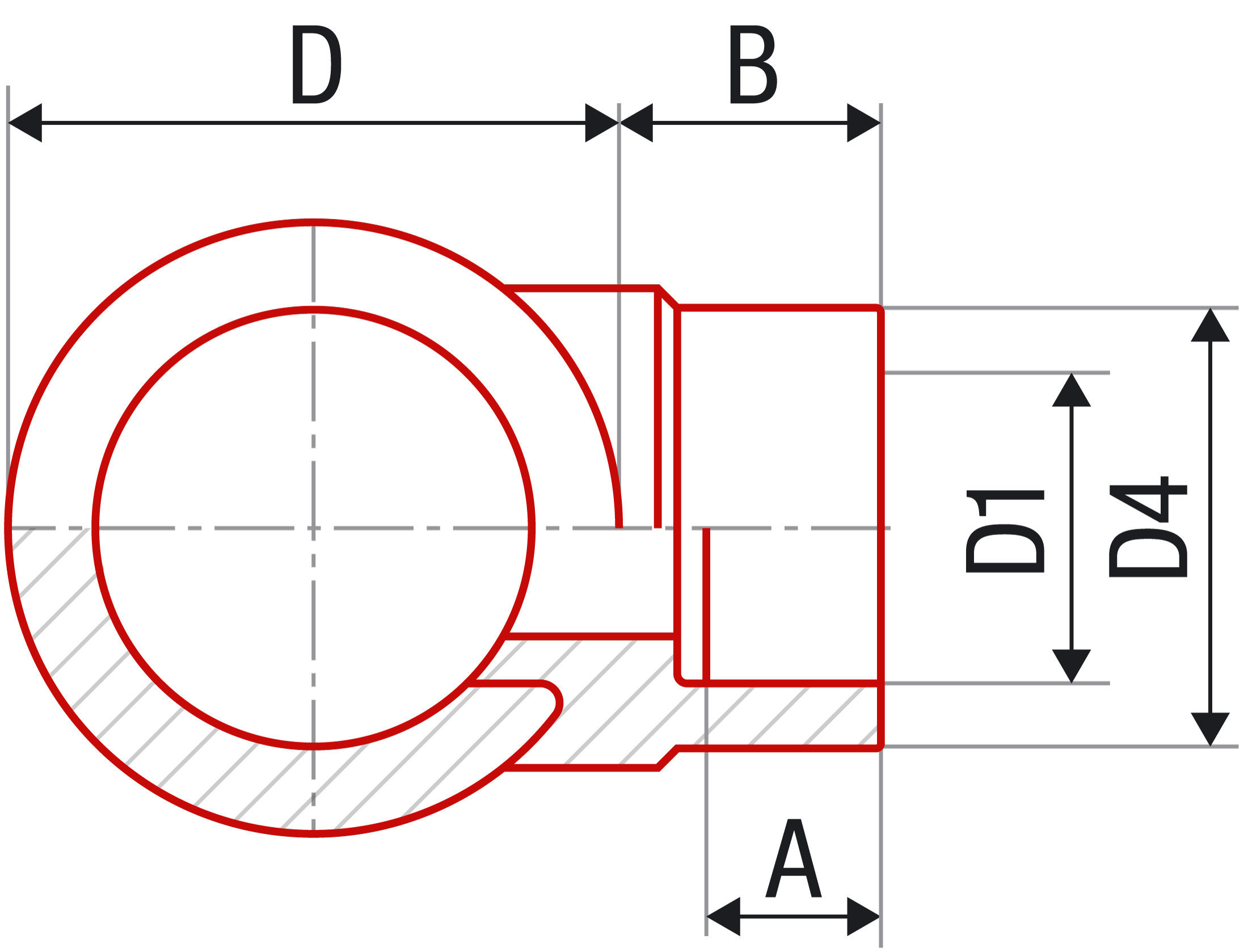

						#	#	D [mm]	D1 [mm]	D4 [mm]	A [mm]	B [mm]
63 × 32	pcs	120	10	0.036	0.150	AA238063032	BA238063032	63	32	46.0	18	27
75 × 32	pcs	120	10	0.036	0.150	AA238075032	BA238075032	75	32	46.0	18	27
90 × 32	pcs	120	10	0.036	0.150	AA238090032	BA238090032	90	32	46.0	18	27
110 × 32	pcs	120	10	0.036	0.150	AA238110032	BA238110032	110	32	46.0	18	25.7
110 × 40	pcs	1	1	0.042	0.107	AA238110040	BA238110040	110	40	57.2	20.5	27
125 × 20	pcs	1	1	0.025	0.040		BA238125020	125	20	28.3	14.5	29
125 × 25	pcs	1	1	0.025	0.040		BA238125025	125	25	37.5	16	29
125 × 32	pcs	1	1	0.035	0.092		BA238125032	125	32	46.0	18	35
125 × 40	pcs	1	1	0.083	0.150		BA238125040	125	40	57.2	20.5	38
125 × 50	pcs	1	1	0.098	1.189		BA238125050	125	50	67.0	23.5	39
125 × 63	pcs	1	1	0.163	0.312		BA238125063	125	63	93.0	27	45

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Have you ever had problems when slipping the rolled-up end of the heated pipe onto a fitting? Try using a common knife or special preparation to slide the outer rim of the pipe end intended for heating at an angle of 30 – 45 degrees, particularly at bigger diameters, i.e. from 40 mm up. You will prevent the material from ruffling.
