FV PP-R straight-way valve

System:	FV AQUA
Material:
Standard:	ČSN EN ISO 15874
Details:	A valve allowing closing or regulation of the flow of water.

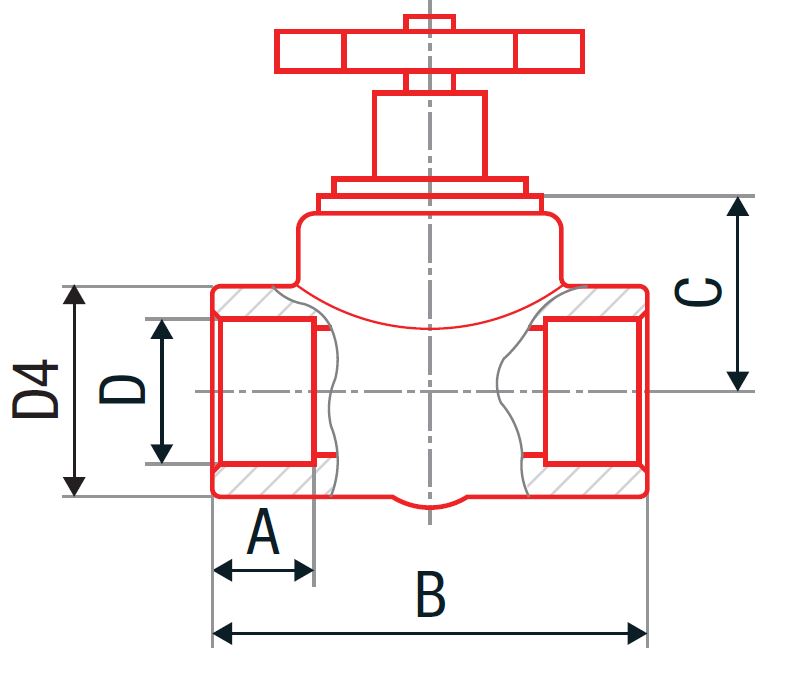

						#	#	D [mm]	D4 [mm]	A [mm]	B [mm]	C [mm]
20	pcs	60	10	0.15	0.60	AA274020000	BA274020000	20	30	14.5	76.0	26
25	pcs	40	10	0.21	0.60	AA274025000	BA274025000	25	37	16.0	83.5	35
32	pcs	30	5	0.32	0.96	AA274032000Z	BA274032000	32	46	18.0	94.0	38
40	pcs	20	2	0.40	1.07	AA274040000Z	BA274040000	40	60	20.5	107.0	38
50	pcs	10	1	0.75	1.92	AA274050000	BA274050000	50	71	23.5	135.0	56
63	pcs	6	1	1.29	2.10	AA274063000	BA274063000	63	84	27.5	160.0	60

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
In case it is necessary to provide dismountable joints application in the valve in the piping, weld the pipe matching the combined reducer with a thread on the valve. If necessary, it is possible to dismantle and exchange the valve easily.
