| System: | FV AQUA |
| Material: | |
| Standard: | ČSN EN ISO 15874 |
| Details: | Ball valve with chrome ball and Teflon seats. |
- Search term must have more than 2 characters.
FV PP-R plastic garden ball valve with elbow outlet

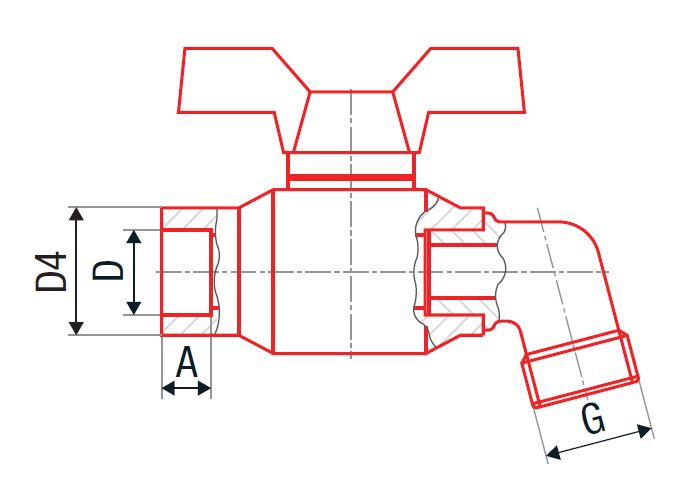

 |  |  |  |  |  | # | D [mm] | D4 [mm] | A [mm] | B [mm] | G |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | pcs | 40 | 1 | 0.14 | 0.39 | AA273020000 | 20 | 31.2 | 14.5 | 96 | 3/4" |
| 25 | pcs | 30 | 1 | 0.15 | 0.77 | AA273025000 | 25 | 37.4 | 16.0 | 117 | 1" |
-
Price list We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
-
Tips for plumbers
In case it is necessary to provide dismountable joints application in the valve in the piping, weld the pipe matching the combined reducer with a thread on the valve. If necessary, it is possible to dismantle and exchange the valve easily.
-
