| System: | FV AQUA |
| Material: | PP-R |
| Standard: | – |
| Details: | Shaped fitting for connection to garden irrigation systems. DN is the inner diameter of the hose in mm. |
- Search term must have more than 2 characters.

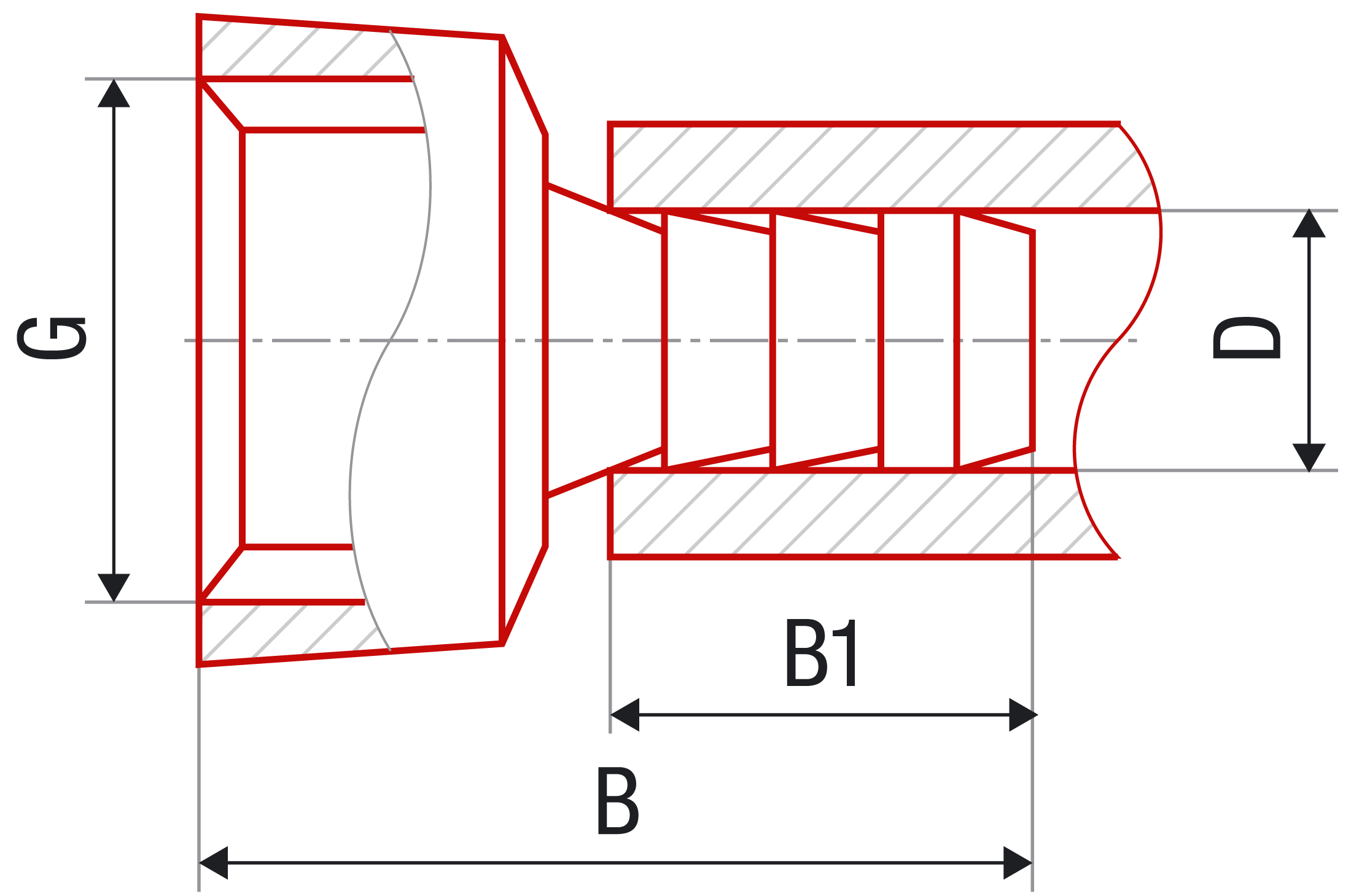

FV PP-R threaded tap connector
 |  |  |  |  |  | #  | #  | DN [mm] | B [mm] | B1 [mm] | G |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 × 3/4" | pcs | 450 | 50 | 0.01 | 0.05 | AA280020034 | BA280020034 | 13 | 43 | 25 | 3/4" |
| 19 × 1" | pcs | 225 | 25 | 0.01 | 0.08 | AA280025001 | BA280025001 | 19 | 48 | 27 | 1" |
-
Price list We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
-
Tips for plumbers
Have you ever had problems when slipping the rolled-up end of the heated pipe onto a fitting? Try using a common knife or special preparation to slide the outer rim of the pipe end intended for heating at an angle of 30 – 45 degrees, particularly at bigger diameters, i.e. from 40 mm up. You will prevent the material from ruffling.
-
