| System: | FV AQUA |
| Material: | PP-R |
| Standard: | ČSN EN ISO 15874 |
| Details: | Economical ending of the water supply with a threaded fitting. The shaped fitting is designed for temporary threaded connections. |
- Search term must have more than 2 characters.

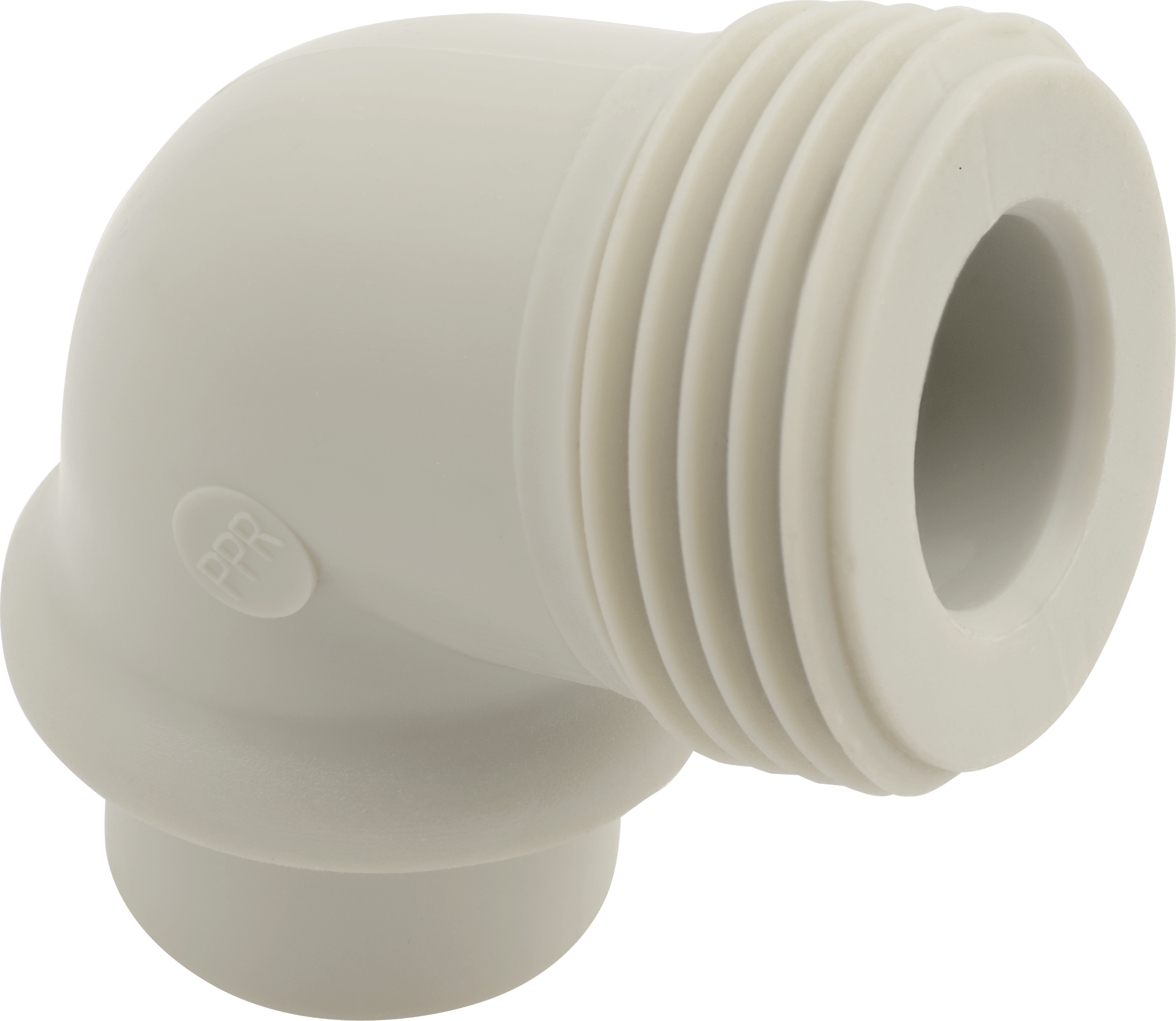

FV PP-R outflow plastic elbow

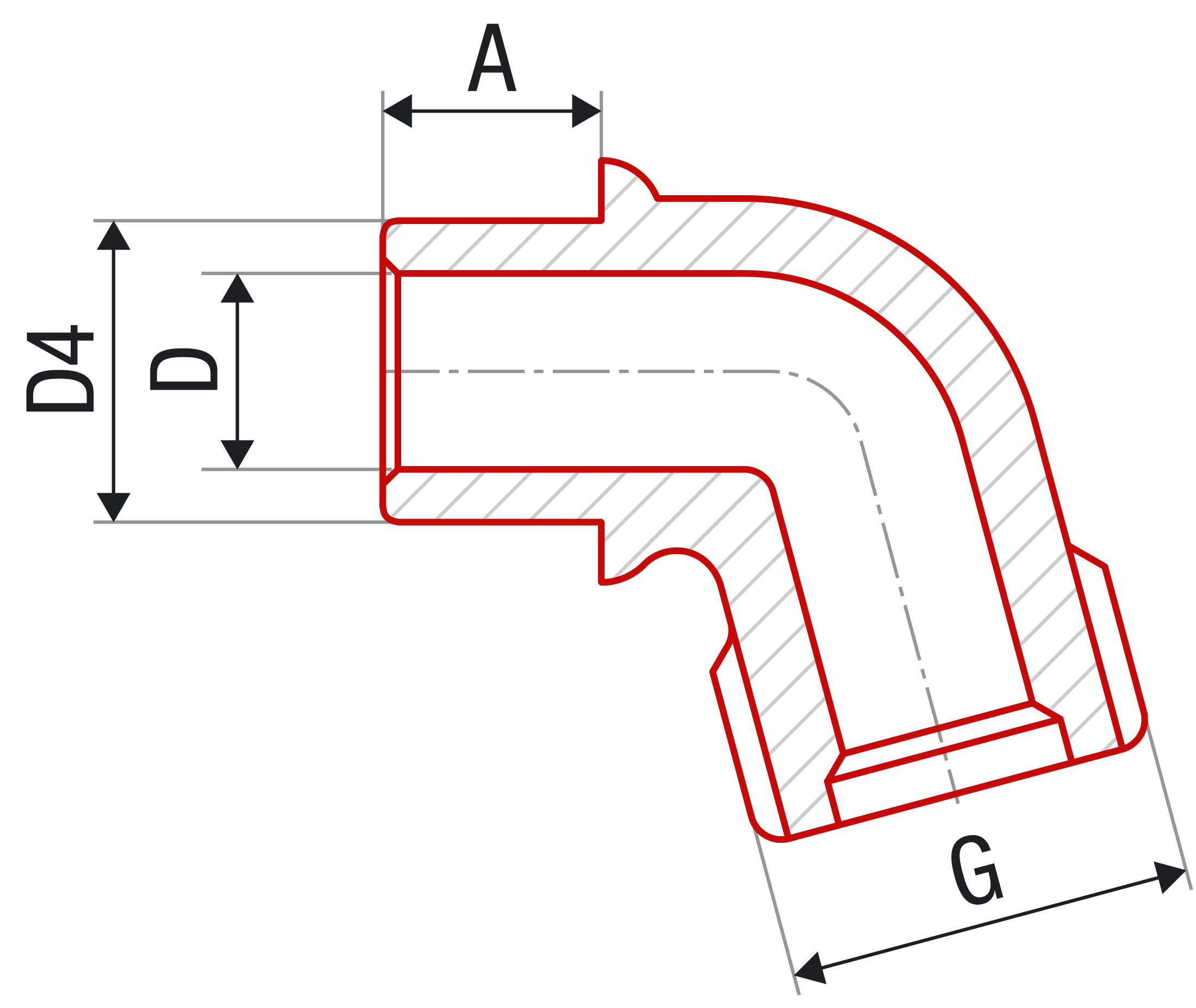

 |  |  |  |  |  | #  | #  | D [mm] | D4 [mm] | A [mm] | G |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 × 3/4" | pcs | 150 | 10 | 0.02 | 0.08 | AA207020034 | BA207020034 | 20 | 23 | 14.5 | 3/4" |
| 25 × 1" | pcs | 100 | 10 | 0.03 | 0.10 | AA207025001 | BA207025001 | 25 | 28.5 | 16.0 | 1" |
-
Price list We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
-
Tips for plumbers
Have you ever had problems when slipping the rolled-up end of the heated pipe onto a fitting? Try using a common knife or special preparation to slide the outer rim of the pipe end intended for heating at an angle of 30 – 45 degrees, particularly at bigger diameters, i.e. from 40 mm up. You will prevent the material from ruffling.
-
