FV PP-R/PP-RCT socket

System:	FV AQUA
Material:	PP-R/PP-RCT
Standard:	ČSN EN ISO 15874
Details:	A simple reliable fitting for pipe connection with reduced pressure loss.

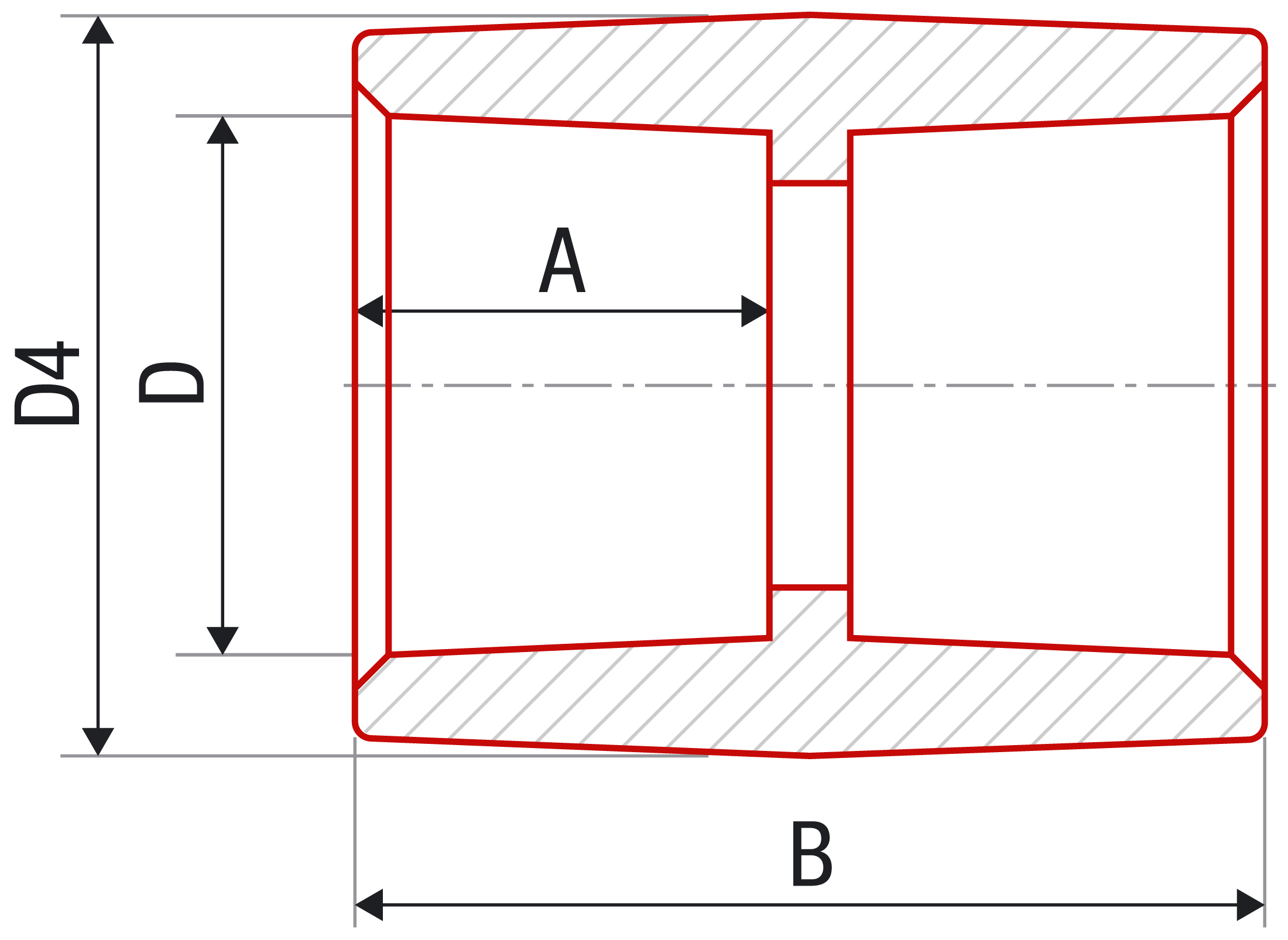

						#	#	D [mm]	D4 [mm]	A [mm]	B [mm]
16	pcs	300	50	0.01	0.03	AA201016000	BA201016000	16	24.10	13.3	29.6
20	pcs	400	50	0.01	0.05	AA201020000	BA201020000	20	29.10	14.5	32.0
25	pcs	200	25	0.03	0.10	AA201025000	BA201025000	25	36.70	16.0	35.5
32	pcs	100	10	0.04	0.19	AA201032000	BA201032000	32	46.20	18.1	38.3
40	pcs	100	10	0.051	0.196	AA201040000	BA201040000	40	57	20.5	45.4
50	pcs	40	4	0.076	0.45	AA201050000	BA201050000	50	70	23.5	53.5
63	pcs	30	2	0.132	0.54	AA201063000	BA201063000	63	84	27.4	60
75	pcs	15	1	0.27	1.92	AA201075000	BA201075000	75	108.5	31.0	66.5
90	pcs	10	1	0.42	2.40	AA201090000	BA201090000	90	127.3	35.5	73.6
110	pcs	4	1	0.457	2.25	AA201110000	BA201110000	110	136	41.5	85
125	pcs	1	1	0.75	2.45		BA201125000	125	165.0	40.0	90.0

Price list
We offer our customers a price list with recommended prices for download. For more information, please contact our export department.
Tips for plumbers
Have you ever had problems when slipping the rolled-up end of the heated pipe onto a fitting? Try using a common knife or special preparation to slide the outer rim of the pipe end intended for heating at an angle of 30 – 45 degrees, particularly at bigger diameters, i.e. from 40 mm up. You will prevent the material from ruffling.
